AD 55T All-Electric Injection Molding Machine

Anstrength All-Electric Machine

AD 55T All-Electric Injection Molding Machine
Order Now
AD 55T All-Electric Injection Molding Machine
AD 55T All-Electric Injection Molding Machine
AD 55T All-Electric Injection Molding Machine
AD 55T All-Electric Injection Molding Machine
AD 55T Technical Parameters



Model

AD55T

Clamping force

kN(tf)

540(55)

Space between tie bar

mm*mm

360*310

Plate dimension

mm*mm

500*540

Opening Stroke

mm

250

Mold thickness

mm

160~350

Positioning ring

mm

100

Ejection force

kN(tf)

21(2.1)

Ejection Stroke

mm

70

Injection system

Screw diameter

mm

18

20

22

20

22

25

22

25

28

25

28

32

 Shot weight(GPPS)

oz

0.63

0.77

0.945

0.91

1.12

1.44

1.33

1.72

2.14

1.72

2.14

2.8

g

18

22

27

26

32

41

38

49

61

49

61

80

Rubber melting speed

r/min

400

400

400

400

Injection distance

mm

73

87

104

104

Nozzle Protruding

mm

30

30

30

30

Nozzle contact force

kN

11

11

12

12

Injection unit

S67L

S85L

S105L

S135L

Injection speed

mm/s

600

600

500

500

Injection rate

cm³/s

153

188

228

188

228

294

190

245

308

245

308

402

Injection pressure

MPa

280

224

179

280

224

179

285

221

180

282

224

172

Holding pressure

MPa

224

179

143

224

179

143

228

177

144

225

179

138

Plasticization capacity

kg/h

10

13

18

13

18

26

18

26

37

26

37

53

Injection unit

S67M

S85M

S105M

S135M

Injection speed

mm/s

300

300

250

250

Injection rate

cm³/s

76

94

114

94

114

147

95

123

154

123

154

201

Injection pressure

MPa

280

224

179

280

224

179

285

221

180

282

224

172

Holding pressure

MPa

224

179

143

224

179

143

228

177

144

225

179

138

Plasticization capacity

kg/h

10

13

18

13

18

26

18

26

37

26

37

53

Other

Machine Dimension

mm*mm*mm

3650*990*1700

3650*990*1700

3650*990*1700

3650*990*1700

Machine weight

T

2.2

2.3

2.4

2.4


Direct Drive Mechanism For Injection



Highly responsive and high speed injection control is achieved with direct-drive structure mechanism as the core of the injection

High response ,low inertia servo motor with corresponding low inertia load design to achieve the aim of the actual closed cycle and high acceleration.

Applied rotation mechanism for the injection unit,which is more convenient for disassembling screw components and effectively reduce the operation time.

Equipped with high-precision encoder and injection pressure sensor,which could control screw position with accuracy and stabilize rubber melting,injection .pressure holding and back pressure operation.


Content-rich standard configuration

Heat cover
Adopt double-deck heat cover of
stainless steel.Reduce energy
consumption of heating system.
Avoid operator be scalded due
to mishandling.
Injection safety protector
Reasonable design which avoids operator
being scalded due to mishandling and
facilitates operation,greatly improves work
efficiency.
Material clean-up plate
Configured stainless steel cleaning
plate under the nozzle to facilitate
waste removal,avoiding waste being left
on the gap of machine while clean-up operation
Less troubled during maintenance.




Chute type erecting bed for hopper
Humanized design .easily installed;
Adopts high-quality steel.stronger
and make it more durable ,safely
and reliably to use.
Color touch display
15 inch HD color touch display ,
its clear image makes it handy to operate,
rotatable design which is more convenient
for technical operation.
Three-color alarm light
When emergency occurs,the device will
remind you what kind of situation by
different colors ,you can cope with urgent
situations more easily,greatly increase the
production management efficiency.



Injection speed controlled



Applied low inertia load design which could strengthen basic characteristics of injection speed responsiveness and low speed injection traceability.

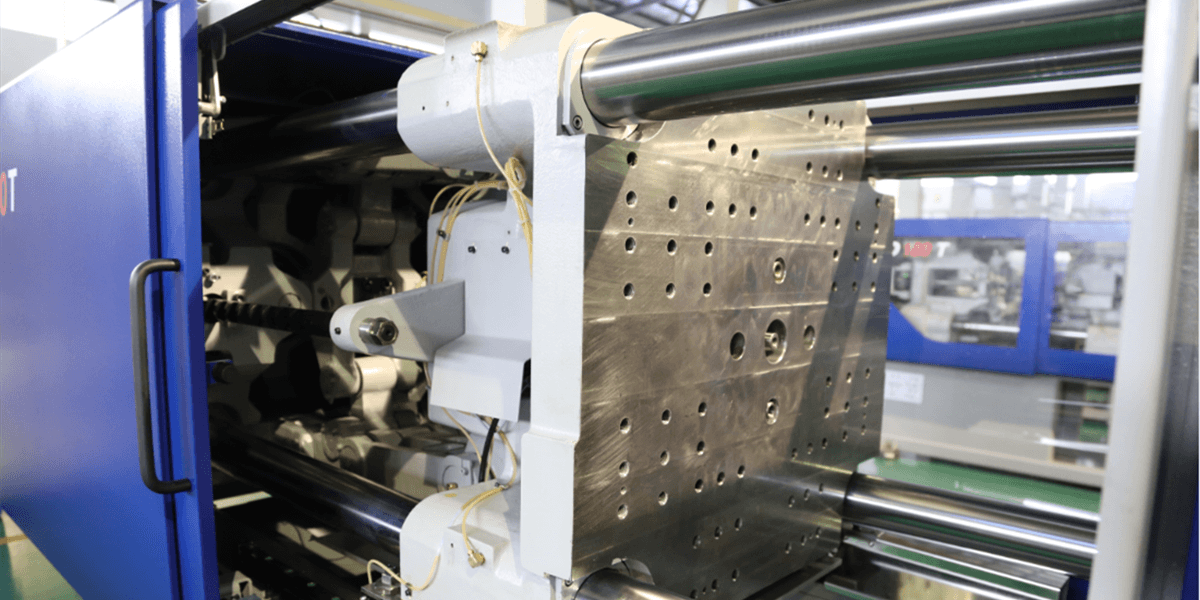

Optimized plate design

Stress concentration plate design unifies clamping force of the mold bears.improving the issues of inadequate venting and nonuniform of pressure on mold surface.what occurs on traditional toggle machines,significantly increasing the mold service life.



Direct-drive closing mold
Direct drive mechanism,quick response
for opening and closing mold.excellent
protection for low pressure.
High standard clamping unit
High standard clamping force
and parallelism adjustment are
achieved with stable clamping
state and reduced mold losses.
Support plate
High wear resistance and low
friction of the movable plate
supports sliding block, extends
mold service life.
Full-automatic lubricating device
Reduce cost of maintenance。



Fixed plate structure
Optimized fixed plate structure.
reduces the tilting deforming of plate
Stress concentration moving plate
Optimized moving plate structure,
significantly improving the precision
of locking face.
Machinery safety bar
Reliable machinery safety bar.
Frame
High strength frame design and adopt
thick wall structure stesl components,
reducing the vibration of fast opening
and closing.



In Response To Diversified Plastics

With requirement of higher heat resistance for high-precision molded parts and the advent of plastics products that can substitute metal parts.the performance requirements of the molded products are increaing.Depending on the characteristics of the resins,from PO with long molding cycle to PC for optical lenses and ABS for structural parts.specially designed and developed screws by Anstrength based on factors such as resin heating temperature and injection speed may be used.together with specialized screw components with special material.special processing and special treatment.



Screw Options Of Various Types



Diversified Products

AD 80T Technical Parameters



Model

AD80T

Clamping force

kN(tf)

780(80)

Space between tie bar

mm*mm

410*360

Plate dimension

mm*mm

580*530

Opening Stroke

mm

300

Mold thickness

mm

160~410

Positioning ring

mm

100

Ejection force

kN(tf)

26(2.7)

Ejection Stroke

mm

80

Injection system

Screw diameter

mm

22

25

28

25

28

32

28

32

36

 Shot weight(GPPS)

oz

1.33

1.72

2.14

1.72

2.14

2.8

3.01

3.96

5.01

g

38

49

61

49

61

80

86

113

143

Rubber melting speed

r/min

400

400

400

Injection distance

mm

104

104

104

Nozzle Protruding

mm

30

30

45

Nozzle contact force

kN

12

12

24

Injection unit

S105L

S135L

S175L

Injection speed

mm/s

500

600

400

Injection rate

cm³/s

190

245

308

245

308

402

246

322

407

Injection pressure

MPa

285

221

180

282

224

172

285

218

172

Holding pressure

MPa

228

177

144

225

179

138

227

174

137

Plasticization capacity

kg/h

18

26

37

26

37

53

37

53

86

Injection unit

S105M

S135M

S175S

Injection speed

mm/s

250

250

200

Injection rate

cm³/s

95

123

154

123

154

201

123

161

203

Injection pressure

MPa

285

221

180

282

224

172

285

218

172

Holding pressure

MPa

228

177

144

225

179

138

227

174

137

Plasticization capacity

kg/h

18

26

37

26

37

53

37

53

86

Other

Machine Dimension

mm*mm*mm

3200*900*1680

3650*990*1700

3650*990*1700

Machine weight

T

1.9

2.3

2.4



Direct Drive Mechanism For Injection



Highly responsive and high speed injection control is achieved with direct-drive structure mechanism as the core of the injection

High response ,low inertia servo motor with corresponding low inertia load design to achieve the aim of the actual closed cycle and high acceleration.

Applied rotation mechanism for the injection unit,which is more convenient for disassembling screw components and effectively reduce the operation time.

Equipped with high-precision encoder and injection pressure sensor,which could control screw position with accuracy and stabilize rubber melting,injection .pressure holding and back pressure operation.


Content-rich standard configuration

Heat cover
Adopt double-deck heat cover of
stainless steel.Reduce energy
consumption of heating system.
Avoid operator be scalded due
to mishandling.
Injection safety protector
Reasonable design which avoids operator
being scalded due to mishandling and
facilitates operation,greatly improves work
efficiency.
Material clean-up plate
Configured stainless steel cleaning
plate under the nozzle to facilitate
waste removal,avoiding waste being left
on the gap of machine while clean-up operation
Less troubled during maintenance.




Chute type erecting bed for hopper
Humanized design .easily installed;
Adopts high-quality steel.stronger
and make it more durable ,safely
and reliably to use.
Color touch display
15 inch HD color touch display ,
its clear image makes it handy to operate,
rotatable design which is more convenient
for technical operation.
Three-color alarm light
When emergency occurs,the device will
remind you what kind of situation by
different colors ,you can cope with urgent
situations more easily,greatly increase the
production management efficiency.



Injection speed controlled



Applied low inertia load design which could strengthen basic characteristics of injection speed responsiveness and low speed injection traceability.



Optimized plate design

Stress concentration plate design unifies clamping force of the mold bears.improving the issues of inadequate venting and nonuniform of pressure on mold surface.what occurs on traditional toggle machines,significantly increasing the mold service life.



Direct-drive closing mold
Direct drive mechanism,quick response
for opening and closing mold.excellent
protection for low pressure.
High standard clamping unit
High standard clamping force
and parallelism adjustment are
achieved with stable clamping
state and reduced mold losses.
Support plate
High wear resistance and low
friction of the movable plate
supports sliding block, extends
mold service life.
Full-automatic lubricating device
Reduce cost of maintenance。



Fixed plate structure
Optimized fixed plate structure.
reduces the tilting deforming of plate
Stress concentration moving plate
Optimized moving plate structure,
significantly improving the precision
of locking face.
Machinery safety bar
Reliable machinery safety bar.
Frame
High strength frame design and adopt
thick wall structure stesl components,
reducing the vibration of fast opening
and closing.



In Response To Diversified Plastics

With requirement of higher heat resistance for high-precision molded parts and the advent of plastics products that can substitute metal parts.the performance requirements of the molded products are increaing.Depending on the characteristics of the resins,from PO with long molding cycle to PC for optical lenses and ABS for structural parts.specially designed and developed screws by Anstrength based on factors such as resin heating temperature and injection speed may be used.together with specialized screw components with special material.special processing and special treatment.



Screw Options Of Various Types



Diversified Products
