Plastic Box Making Machine

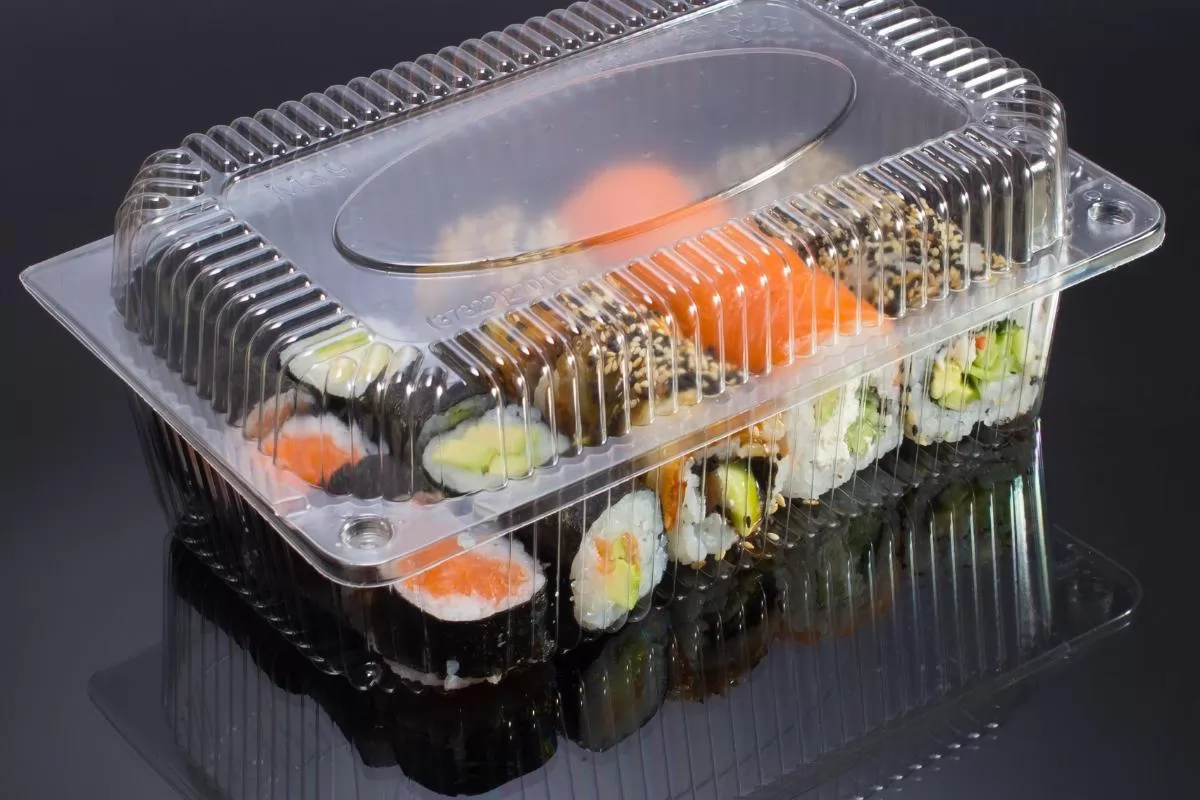

plastic box

PLASTIC INJECTION MOLDING MACHINE MAKING SMACK BOX.

MACHINE MODEL: LOG 320 TON

TYPE: SERVO SYSTEM

CLAMPING FORCE: 3200 KN

PART: SMACK BOX

CAVITY: 4

MATERIAL: PS

PRODUCT DIMENSION: 170*120*65MM

PRODUCT WEIGHT: 19G/PCS

Model LOG-320
International Recognition Number 1870/320
Injection System A B C
Theoretical Volume 1062 1231 1414
Actual Injection Volume 966 1120 1286
33.7 39.2 44.9
Injection Speed 313 362 416
Injection Rate 170 210 240
Screw Diameter 65 70 75
Injection Pressure 207 178 155
Aspect Ratio 22.6:1 21:1 19.6:1
Screw Stroke 320
Screw Speed 0-150
Clamping System
Clamping Force 3200
Mold Opening Stroke 615
Template Size 945*945
Connecting Rod Inner Distance 710 吒 55
Bulk Modulus 280-770
Template Maximum Stroke 1385
Hydraulic Ejection Stroke 160
Hydraulic Ejection Force 77
Power / Electric Heat
Hydraulic System Pressure 17.5
Oil Pump Motor 30/39
Electric Heat 25.3
Number of Heating Control Zones 5* nozzle
Other
Cycle Time 5.0
Fuel Tank Capacity 500
Mechanical Dimensions 6.8*1.63*2.25
Theoretical Machine Weight 12500



(If you want to know more about our machine, please watch this video.)

Plastic Smack Box Injection Molding Machine-LOG-S8 320T Servo System&Energy-saving Injection Molding Machine
