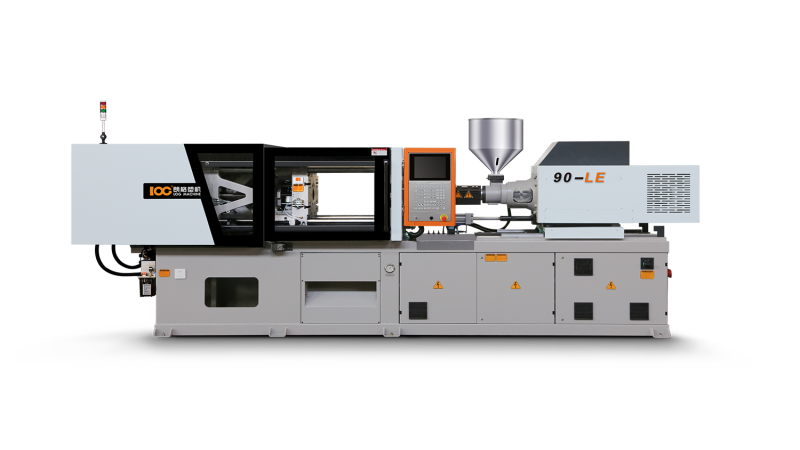

LOG-90LE
Specifications of Log-90le（S105m/S135m）
|
Shot
volume(PS)
|
Screw
diameter
|
Clamping
force
|
Opening
stroke
|
Tie-Bar
Distance
|
Mold
thickness
|
Pump
motor
|
|
47/56g |
26/28mm |
900kn |
1650mm |
360*360(mm) |
150-360(mm) |
6.3/8.6kw |
1.Direct Drive Structure For Injection Unit High Response,effective injection control
2.Barrel Installation - Flange Type Structure, Easy To Assembly Reduce The Installation Time.
3.With High Precise Encoder And Injection Pressure Sensor.To Control The Position Of Screw & Barrel . Stablize The
Charging Injecting, Keeping Pressure And BackPressure Engineering.
4. Fully Automatic Lubrication Device To Reduce Maintenance Cost.

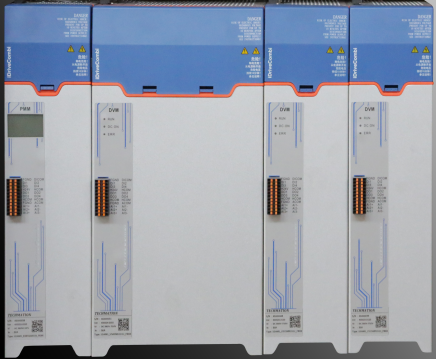

5.Highly Responsive,Low-Inertia Servo Motor MatchThe Driver Perfectly ToAchieve The Closed Loop And High Acceleration.
6. center pressing clamping structure Opening and closing mold balance high repetition precision
 |
 |
 |
 |
 |
|
Conjoined toggle |
High-hardness Platen |
Platen Flange |
Gear-adjusting ring | Graphite Bush |
