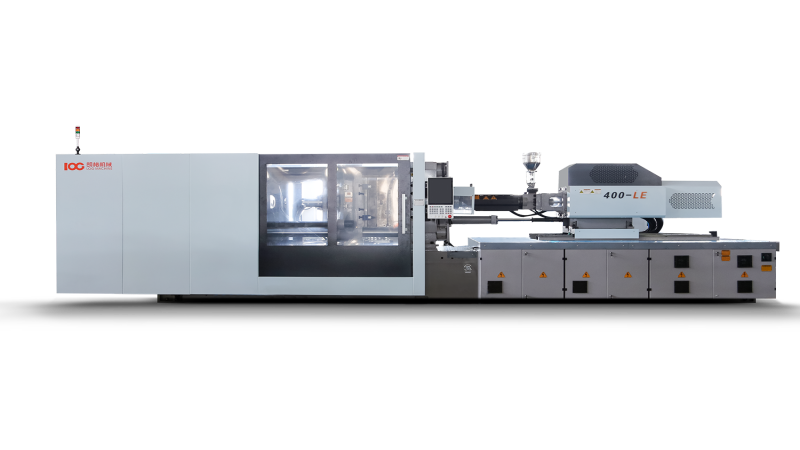

LOG-400LE
Specifications of Log-400le(S422m/S529m)
|
Shot
weight(PS)
|
Screw
diameter
|
Clamping
force
|
Opening
stroke
|
Space between tie bars
|
Mold
thickness
|
Pump
motor
|
|
378/582g |
50/56mm |
4000kn |
710mm |
770*705(mm) |
280-820(mm) |
17.3/25.6kw |

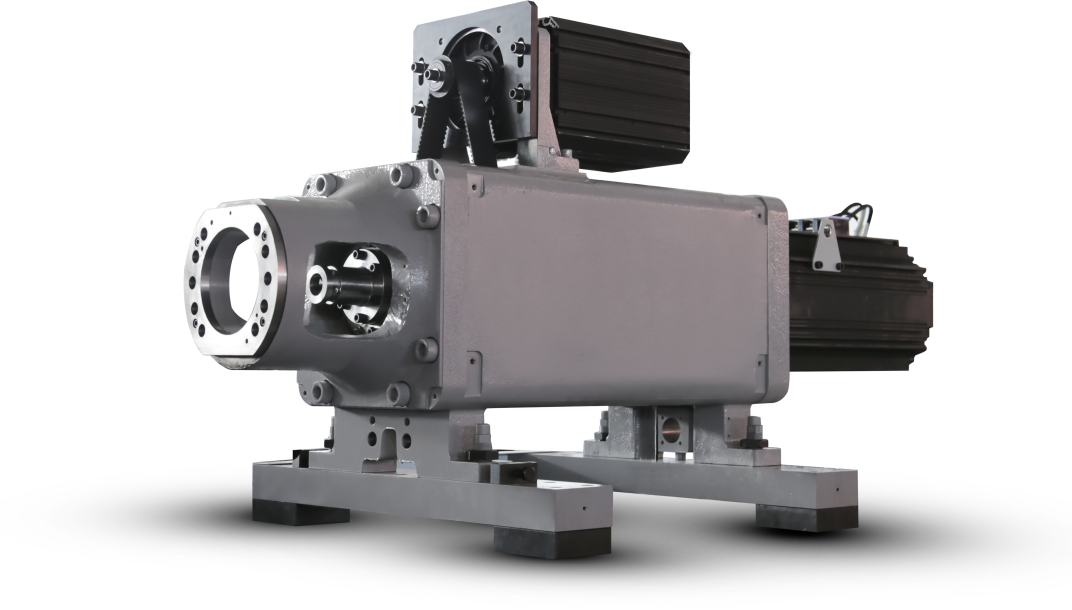

1.Direct Drive Structure For Injection Unit High Response,effective injection control
2.Barrel Installation - Flange Type Structure, Easy To Assembly Reduce The Installation Time.
3.With High Precise Encoder And Injection Pressure Sensor.To Control The Position Of Screw & Barrel . Stablize The
Charging Injecting, Keeping Pressure And BackPressure Engineering.
4. Fully Automatic Lubrication Device To Reduce Maintenance Cost.

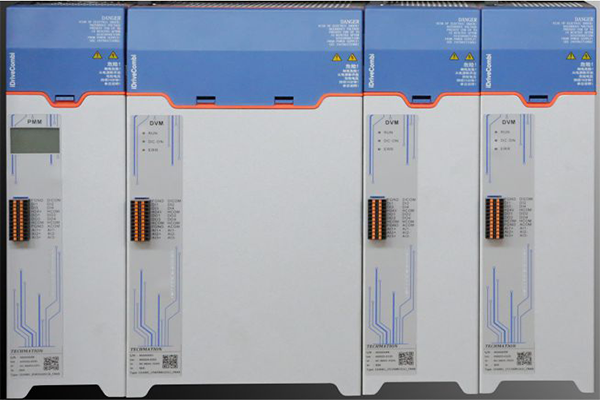

5.Highly Responsive,Low-Inertia Servo Motor MatchThe Driver Perfectly ToAchieve The Closed Loop And High Acceleration.
6. center pressing clamping structure Opening and closing mold balance high repetition precision
 |
 |
 |
 |
 |
|
Conjoined toggle |
High-hardness Platen |
Platen Flange |
Gear-adjusting ring | Graphite Bush |
