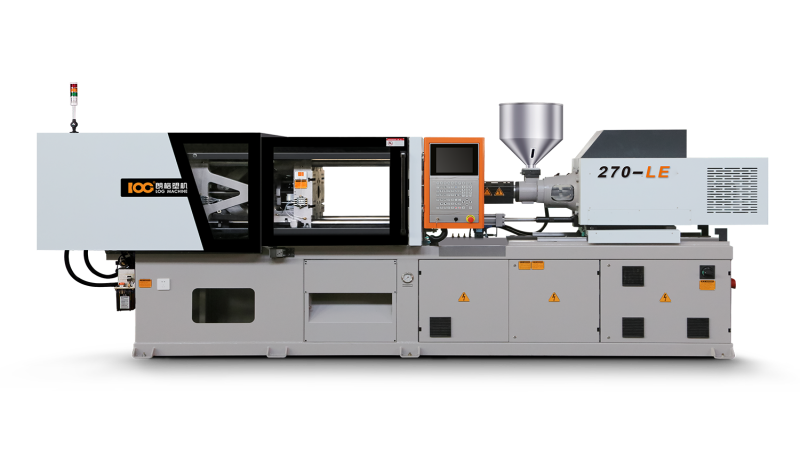

LOG-270LE
Specifications of Log-270le(S219m/S263m)
|
Shot
weight(PS)
|
Screw
diameter
|
Clamping
force
|
Opening
stroke
|
Space between tie bars
|
Mold
thickness
|
Pump
motor
|
|
182/378g |
40/50mm |
2700kn |
570mm |
875*855(mm) |
220-650(mm) |
13.5/17.3kw |

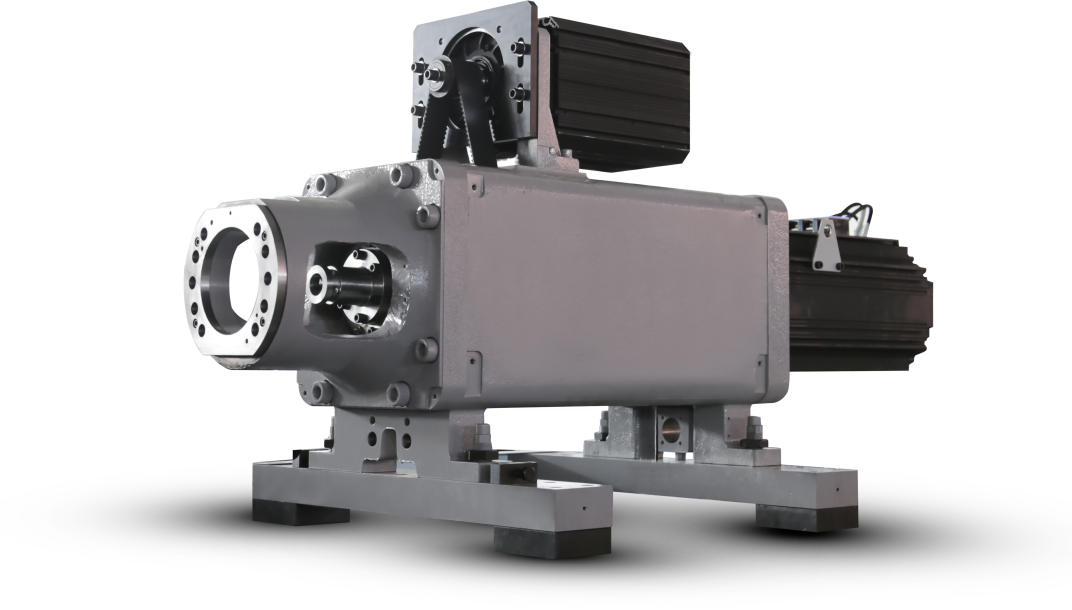

1.Direct Drive Structure For Injection Unit High Response,effective injection control
2.Barrel Installation - Flange Type Structure, Easy To Assembly Reduce The Installation Time.
3.With High Precise Encoder And Injection Pressure Sensor.To Control The Position Of Screw & Barrel . Stablize The
Charging Injecting, Keeping Pressure And BackPressure Engineering.
4. Fully Automatic Lubrication Device To Reduce Maintenance Cost.

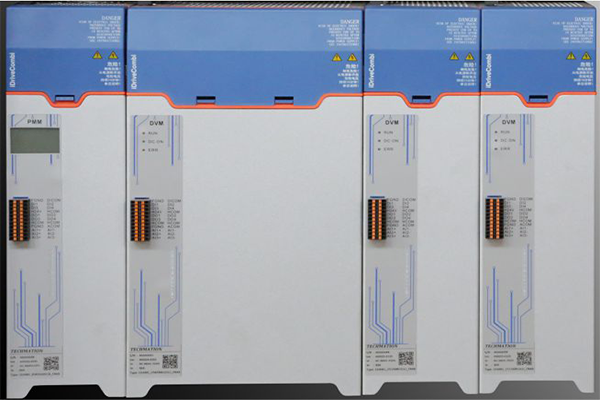

5.Highly Responsive,Low-Inertia Servo Motor MatchThe Driver Perfectly ToAchieve The Closed Loop And High Acceleration.
6. center pressing clamping structure Opening and closing mold balance high repetition precision
 |
 |
 |
 |
 |
|
Conjoined toggle |
High-hardness Platen |
Platen Flange |
Gear-adjusting ring | Graphite Bush |
