Servo Injection Molding Machine

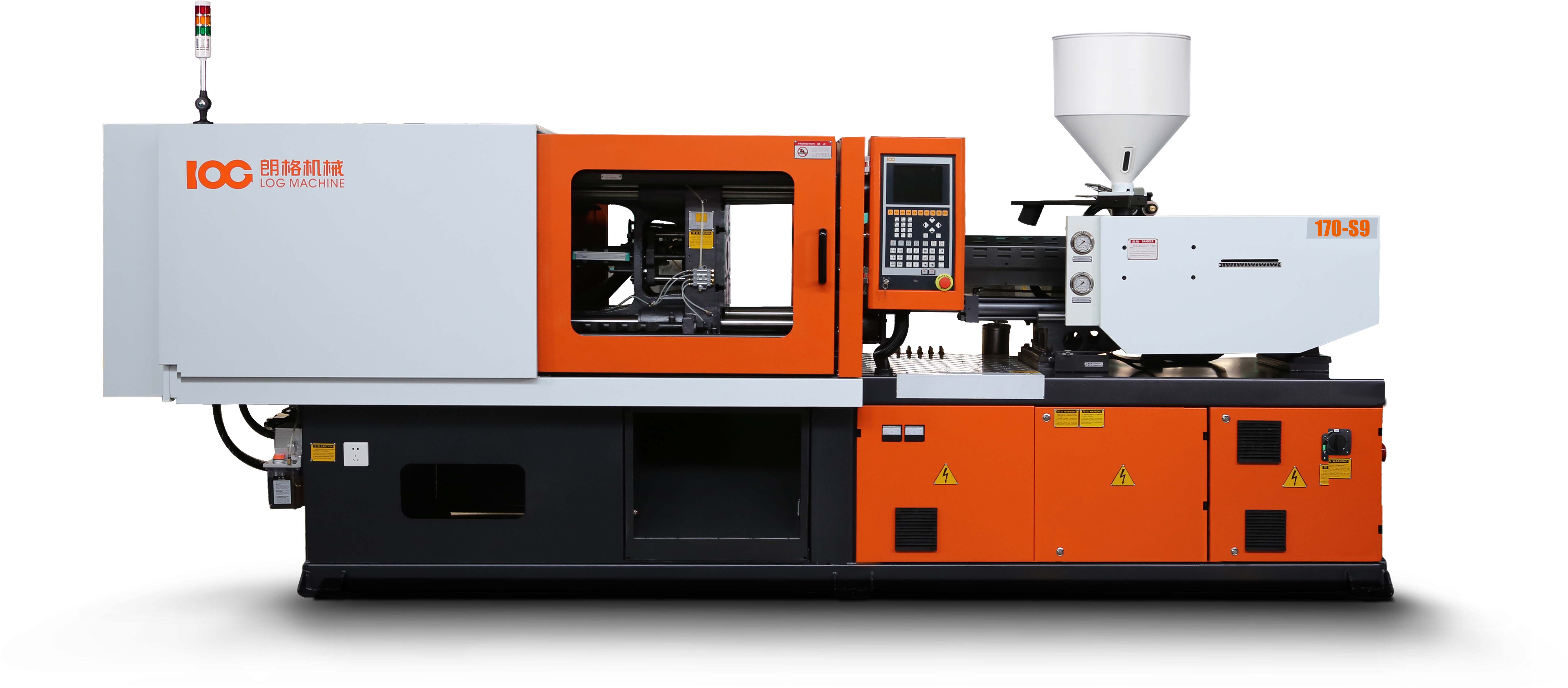

LOG-S9 170T Servo System&Energy-saving Injection Molding Machine

high quality
LOG-S9 170T Servo System&Energy-saving Injection Molding Machine
LOG-S9 170T Servo System&Energy-saving Injection Molding Machine
LOG-S9 170T Servo System&Energy-saving Injection Molding Machine
LOG-S9 170T Servo System&Energy-saving Injection Molding Machine

Description

Reviews

The video of LOG-S9



Specifications of LOG S9 170

Shot
volume(PS)
Screw
diameter
Clamping
force
Opening
stroke
Tie-Bar
Distance
Mold
thickness
Pump
motor

298g

45mm

1700kn

430mm

510*460(mm)

180-500(mm)

28.3kw

Clamping Unit



1 .Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

2.First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

3.Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

5.Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.·




Conjoined toggle

High-hardness Platen

Platen Flange

Gear-adjusting ring Graphite Bush



Injection Unit




1 .Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.

3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.

4.Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

5.Bridge-style design, for different L/D ratio plasticizing parts.


Sturdy Double-cylinder Injection Balanced Double-cylinder Design Graphite Bush Low-frictional aeals Moveable Bridge-style Rack




Servo Drive Features



1.High-speed communication via bus to realize the actual pressure, the flow of real-time monitoring of multiple signals, driver output current, load rate.

2.Medium-sized syringe of dual-pump or multiple-pump confluence way, using a special servo control technology to achieve the perfect synchronization control of servo and oil pump, to achieve the perfect confluence of multiple oil pumps.

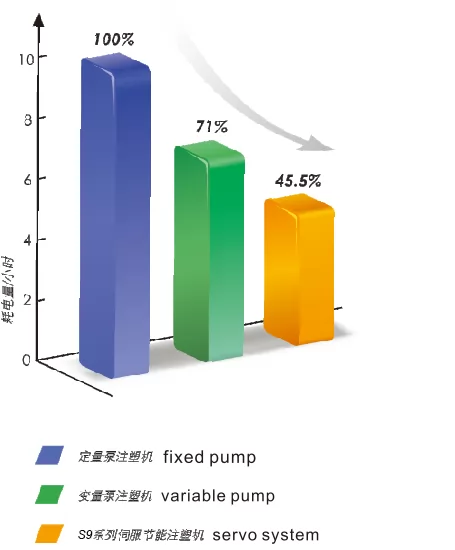

Energy Saving Effect Test Cases

The core advantages of LOG-S9

  • THE FIRST ADVANTAGE

          The increased width of high-rigidity platen produces a super-large tie bar space, allowing installation of bigger molds. Therefore, the molding system is more cost-effective for its wider applications.



  • THE SECOND ADVANTAGE

            The second advantage is the improvements at injection unit. The double-cylinder design generates super-large injecting pressure. It facilitates the process of parameters control, and improves the surface finishing of products, both interior quality and dimensional precision.



  • THE THIRD ADVANTAGE

          The third advantage is the enlarged power units, which increases pump flow and operating speed.

       See more details on the video

Test product: snack box
Material: PP
Weight: 21g
Wall thickness: 0.43mm
2 Cavities

Test condition
Three sets machines
Same oil pump displacement
Same settings
Processing several hours
Processing several hours
Oil temperature hold on 40 degrees
