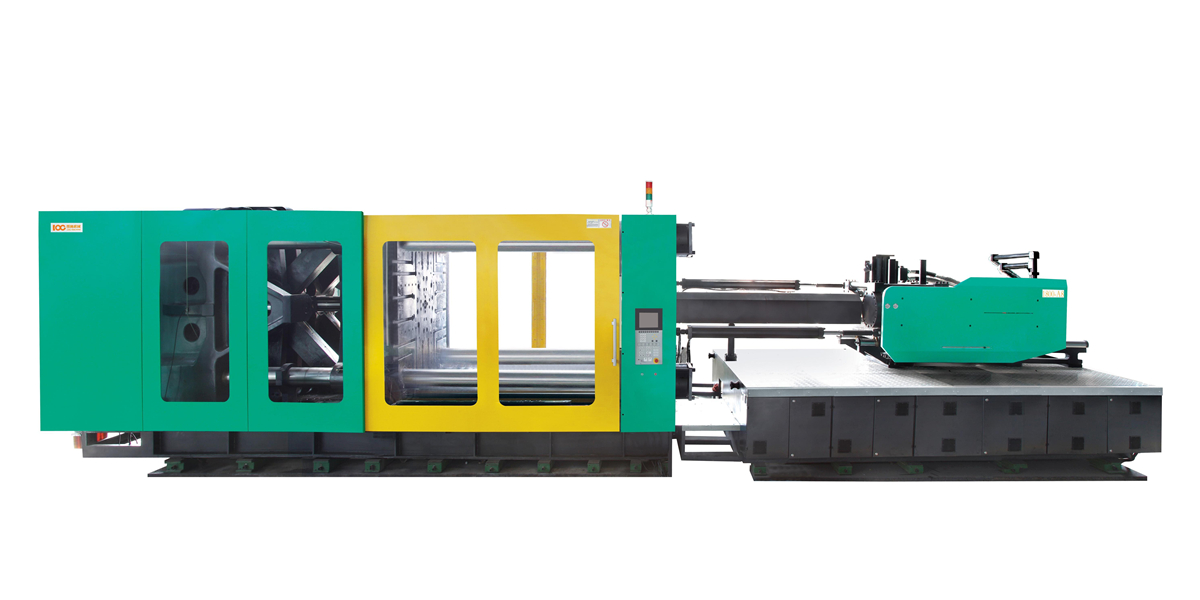

LOG-A8 1800T Variable Pump Injection Molding Machine

A8 Series Variable Pump Machines

LOG-A8 1800T Variable Pump Injection Molding Machine
Order Now
LOG-A8 1800T Variable Pump Injection Molding Machine
LOG-A8 1800T Variable Pump Injection Molding Machine
LOG-A8 1800T Variable Pump Injection Molding Machine
LOG-A8 1800T Variable Pump Injection Molding Machine

Specifications  of LOG1800

INJECTION

LOG1800

A

B

C

Shot   volume

cm³

8495

9852

11310

Shot   weight  (ps)

G

7730

8965

10292

oz

274

318

365

Max injection rate

cm³/s

1128

1308

1502

Screw  diameter

Mm

130

140

150

Plasticizing rate

Kg/h

500

543

594

Injection  pressure

Mpa

164

142

123

Screw   L:D ratio



24:1

22.3:1

20.8:1

screw  speed

r/min

0~80

CLAMPING



Clamping force

Kn

18000

Opening stroke

Mm

1610

Platen  size

MmXmm

2230*2100

Space between tie bars

MmXmm

1550*1430

Mold  thickness  (Min--Max)

Mm

700~1500

Hydraulic ejection stroke

Mm

400

Hydraulic ejection force

Kn

318

POWER UNIT



Hydraulic system  pressure

Mpa

16

Pump motor

Kw

37+37+30+30

Heating capacity

Kw

95.05

Number of temp control zones



6+ (nozzle)

GENERAL



Dry-cycle time

sec

18

oil tank capacity

L

3000

Machine dimensions

Mxmxm

14.2*3.4*5.1

Machine weight

kg

105000

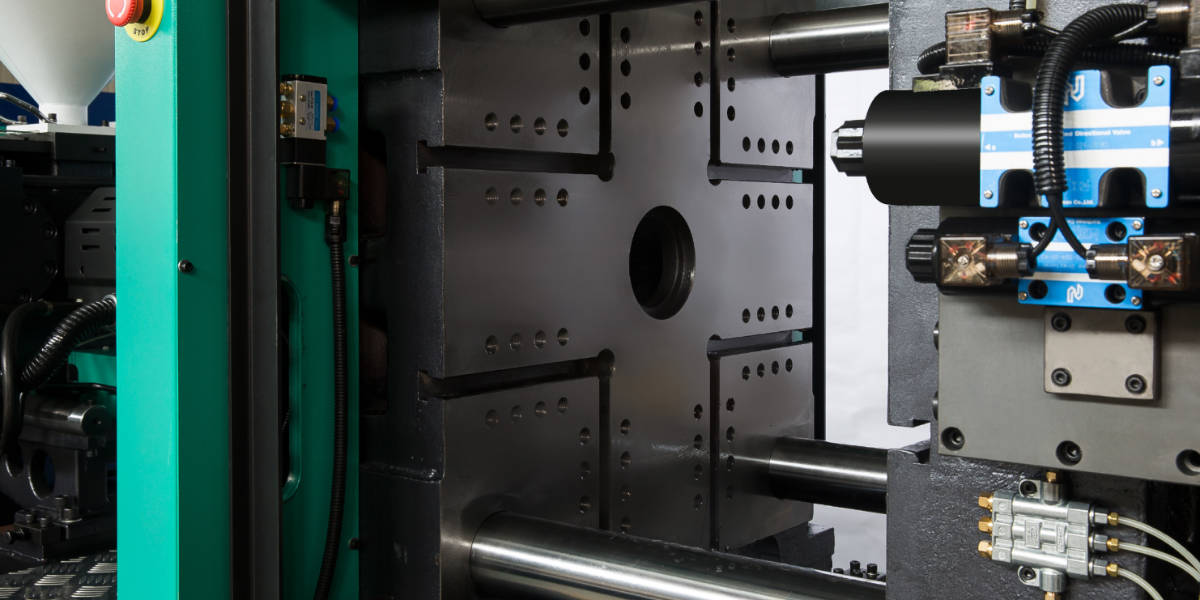

Clamping Unit



1 .Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

2.First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

3.Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

5.Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.·




Conjoined toggle

High-hardness Platen

Platen Flange

Gear-adjusting ring Graphite Bush



Injection Unit



1 .Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.

3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.

4.Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

5.Bridge-style design, for different L/D ratio plasticizing parts.


Sturdy Double-cylinder Injection Balanced Double-cylinder Design Graphite Bush Low-frictional aeals Moveable Bridge-style Rack

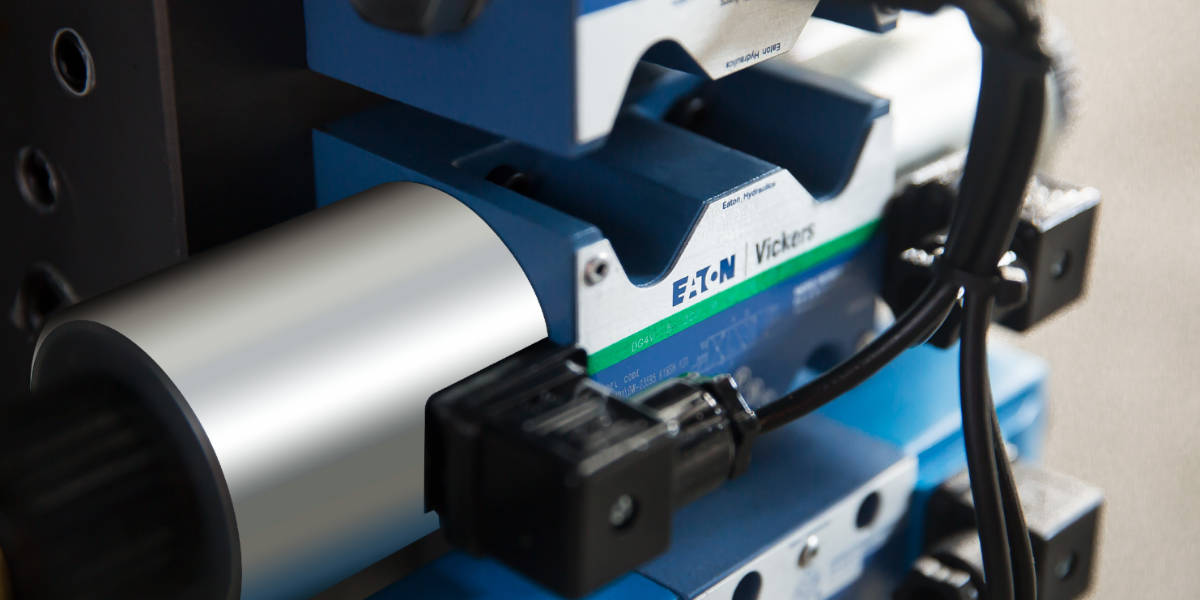

Hydraulic Parts



As compared with fixed-pump system, it saves power by 30%-70%.



Electric Parts



1.Humanized computer interface operation,simple and convenient.

2.World famous computer brand professional for injection machine.

3.Data will be saved during production process,displayed by list,diagram and other forms to meet the practical requirements.

4.Huge storage and protect the data
