Plastic Cup Making Machine

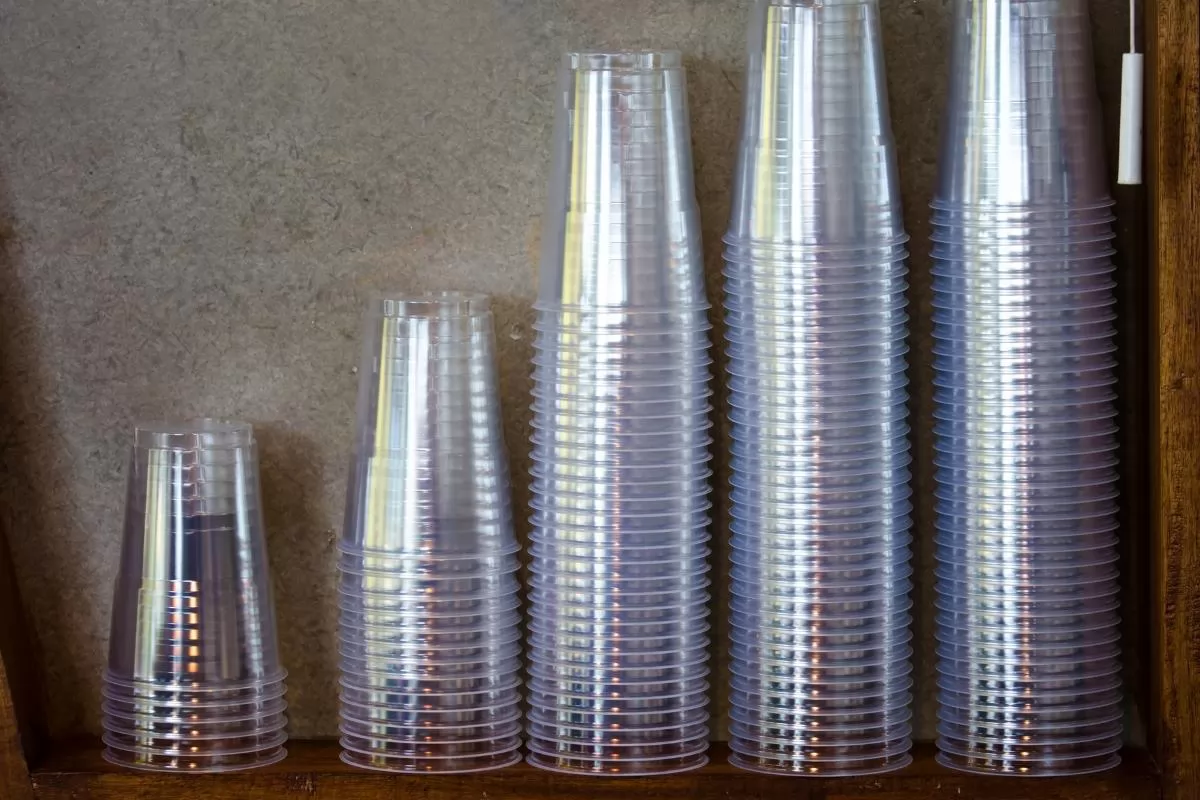

plastic cup

MACHINE MODEL: LOG 130 TON

TYPE: SERVO SYSTEM

CLAMPING FORCE: 1300 KN

PART: CUP

CAVITY: 2

MATERIAL: PS

PRODUCT DIMENSION: Φ90*100MM/PCS

PRODUCT WEIGHT: 10G/PCS

CYCLE TIME: 16 SEC

(How to choose a plastic basket making machine,watch the video below.)

Plastic Cup Injection Molding Machine -LOG-S8 130T Servo System&Energy-saving Injection Molding Machine



Recommended Plastic Cup 130 Ton Injection Molding Machine Parameters

Model LOG-130
International Recognition Number 416/130
Injection System A B C
Theoretical Volume 215 263 302
Actual Injection Volume 196 239 274
6.9 8.4 9.6
Injection Speed 97 118 163
Injection Rate 46 60 75
Screw Diameter 38 42 45
Injection Pressure 193 158 138
Aspect Ratio 22:1 20:1 4&1
Screw Stroke 190
Screw Speed 180
Clamping System
Clamping Force 1300
Mold Opening Stroke 380
Template Size 610 吒 10
Connecting Rod Inner Distance 410*410
Bulk Modulus 150-430
Template Maximum Stroke 810
Hydraulic Ejection Stroke 120
Hydraulic Ejection Force 42
Power / Electric Heat
Hydraulic System Pressure 17.5
Oil Pump Motor 11/18.2
Electric Heat 7.7
Number of Heating Control Zones 4+nozzle
Other
Cycle Time 1.3
Fuel Tank Capacity 200
Mechanical Dimensions 4.6*1.2*1.8
Theoretical Machine Weight 3550
