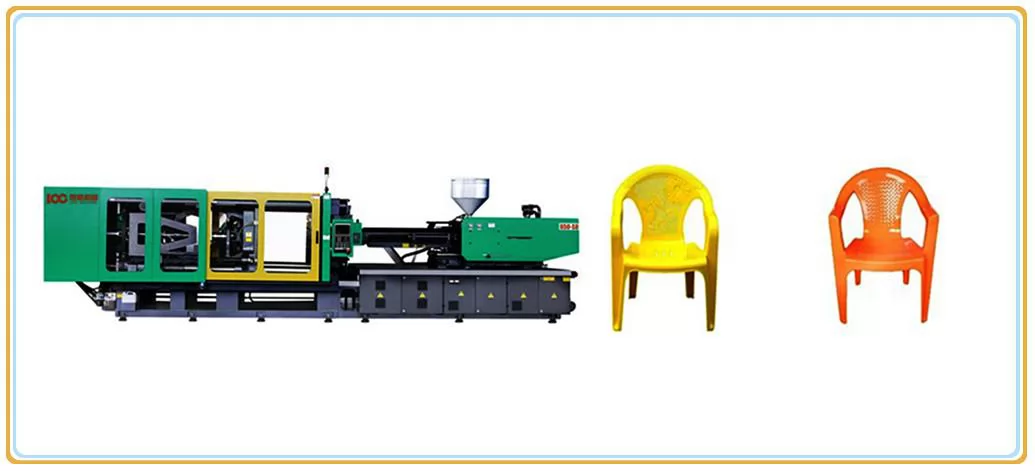

Plastic Chair Making Machine

plastic chair making machine

Plastic Chair Moulding Machine Description

Are you looking for a machine dedicated to the production of plastic chairs? As a professional injection molding machine manufacturer, we have been selling affordable plastic chair molding machines to customers around the world. We have various models of injection molding machines for you to choose from, which can meet your individual needs. We have a professional overseas sales team and technical engineers, if you need us to serve you, welcome to contact us.


  • Machine Model: Log 650 Ton

  • Type: Servo System

  • Clamping Force: 6500 Kn

  • Part: Stool

  • Cavity: 1

The Core Advantage of Our Machine

Clamping Unit

  • Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

  • First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

  • Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

  • Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.

Conjoined Toggle
Conjoined Toggle
Graphite Bush
Graphite Bush
High Hardness Platen
High Hardness Platen
Gear Adjusting Ring
Gear Adjusting Ring


Plastic Chair Injection Molding video



Popular Plastic Chair Molding Machine Recommendation


Recommendation Plastic Chair Molding Machine Parameters

Model LOG-650
International Recognition Number 4640/650
Injection System A B C
Theoretical Volume 2160 2734 3376
Actual Injection Volume 1966 2488 3072
68.8 87.1 107.5
Injection Speed 420 531 656
Injection Rate 254 340 442
Screw Diameter 80 90 100
Injection Pressure 237 187 151
Aspect Ratio 23.6:1 21:1 19:1
Screw Stroke
Screw Speed 0-125
Clamping System
Clamping Force 6500
Mold Opening Stroke 920
Template Size 1320*1290
Connecting Rod Inner Distance 930*900
Bulk Modulus 350-910
Template Maximum Stroke 1830
Hydraulic Ejection Stroke 265
Hydraulic Ejection Force 182
Power / Electric Heat
Hydraulic System Pressure 17.5
Oil Pump Motor 22+ 22/33 39
Electric Heat 51.6
Number of Heating Control Zones 6+ nozzle
Cycle Time 6.0
Fuel Tank Capacity 1300
Mechanical Dimensions 9.6*1.9*2.3
Theoretical Machine Weight 28000


About the Price of Plastic Chair Molding Machine?

The final price of the plastic chair manufacturing machine should be quoted according to the specifications and configuration selected by the customer, but our price will definitely make you affordable. In the same industry, our price is more reasonable.

If you need to buy or consult the quotation of plastic chair injection molding machine, please contact us!
