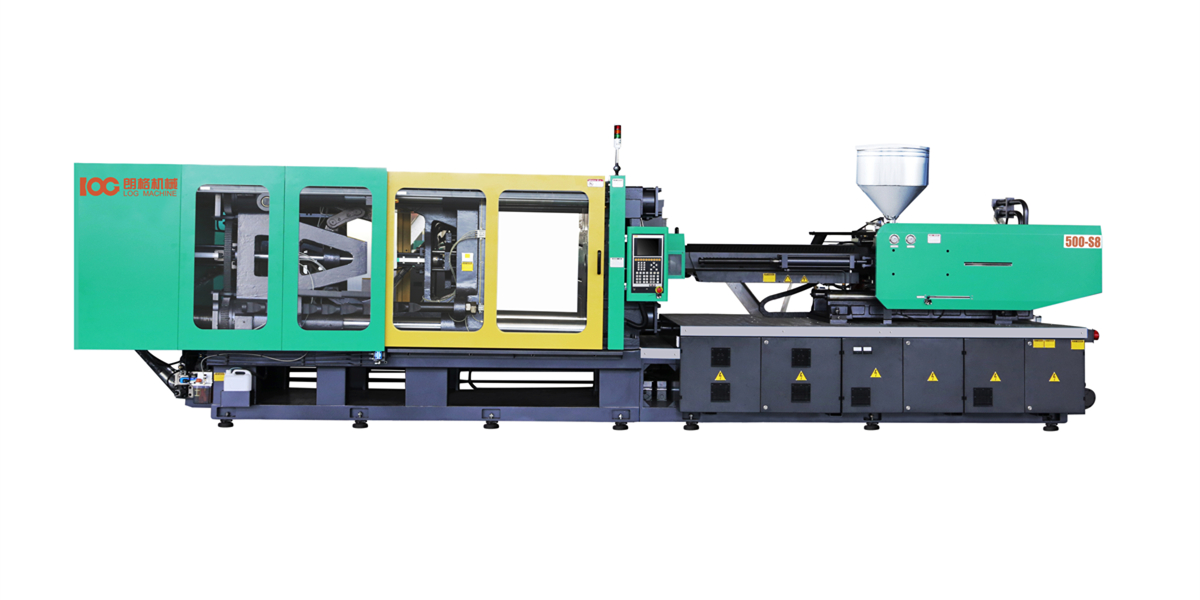

LOG-S8 500T Servo System&Energy-saving Injection Molding Machine

S8 Series Servo Machines

LOG-S8 500T Servo System&Energy-saving Injection Molding Machine
Order Now
LOG-S8 500T Servo System&Energy-saving Injection Molding Machine
LOG-S8 500T Servo System&Energy-saving Injection Molding Machine
LOG-S8 500T Servo System&Energy-saving Injection Molding Machine
LOG-S8 500T Servo System&Energy-saving Injection Molding Machine

Specifications  of LOG500

INJECTION

LOG500

A

B

C

Shot   volume

cm³

1590

2042

2550

Shot   weight  (ps)

G

1494

1919

2397

oz

52

67

84

Max injection rate

cm³/s

357

459

573

Screw  diameter

Mm

75

85

95

Plasticizing rate

Kg/h

188

256

338

Injection  pressure

Mpa

204

159

127

Screw   L:D ratio



22:1

21:1

18.7:1

screw  speed

r/min

0~125

CLAMPING



Clamping force

Kn

5000

Opening stroke

Mm

820

Platen  size

MmXmm

1180*1180

Space between tie bars

MmXmm

830*830

Mold  thickness  (Min--Max)

Mm

300~820

Max.daylight

Mm

1600

Hydraulic ejection stroke

Mm

210

Hydraulic ejection force

Kn

111

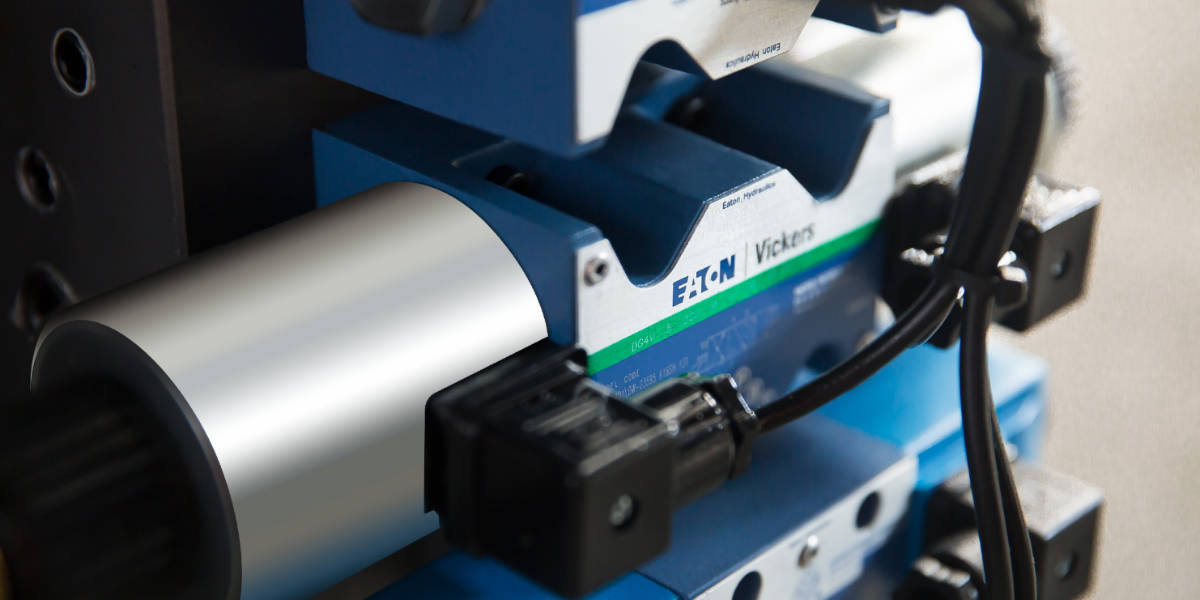

POWER UNIT



Hydraulic system  pressure

Mpa

17.5

Pump motor

Kw

29+39.4

Heating capacity

Kw

35.4

Number of temp control zones



5+ (nozzle)

GENERAL



Dry-cycle time

sec

5.2

oil tank capacity

L

1150

Machine dimensions

Mxmxm

9.25*1.85*2.0

Machine weight

kg

20500



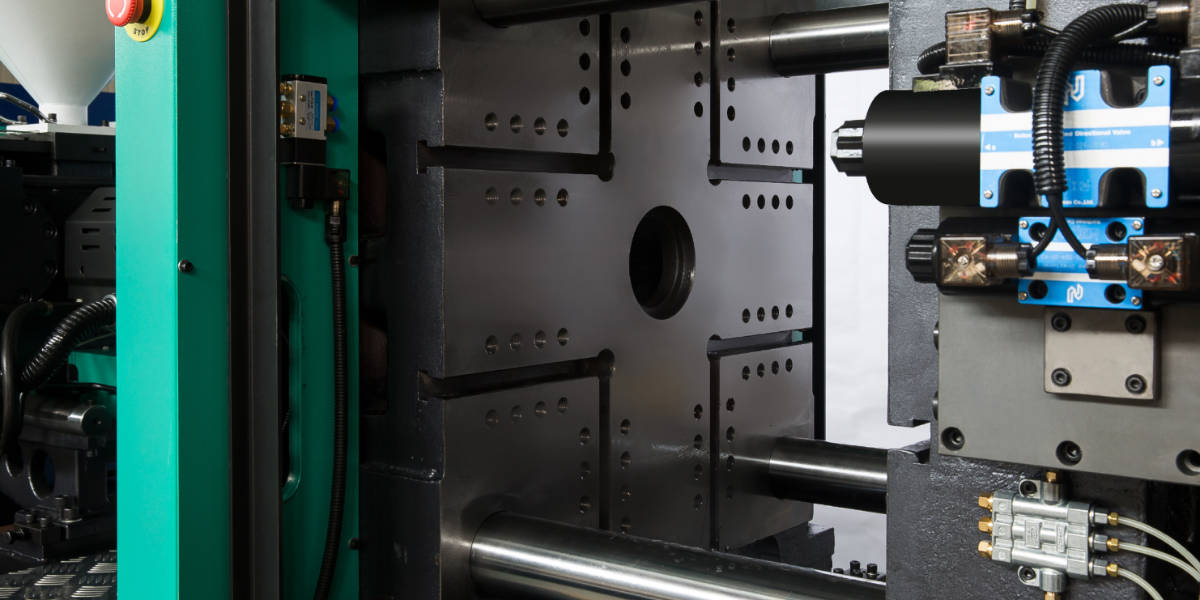

Clamping Unit



1 .Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.

2.First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.

3.Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.

4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.

5.Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.·




Conjoined toggle

High-hardness Platen

Platen Flange

Gear-adjusting ring Graphite Bush



Injection Unit



1 .Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.

2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.

3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.

4.Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.

5.Bridge-style design, for different L/D ratio plasticizing parts.


Sturdy Double-cylinder Injection Balanced Double-cylinder Design Graphite Bush Low-frictional aeals Moveable Bridge-style Rack



Servo Drive Features



1.High-speed communication via bus to realize the actual pressure, the flow of real-time monitoring of multiple signals, driver output current, load rate.

2.Medium-sized syringe of dual-pump or multiple-pump confluence way, using a special servo control technology to achieve the perfect synchronization control of servo and oil pump, to achieve the perfect confluence of multiple oil pumps.



Energy Saving Effect Test Cases

Test product: snack box
Material: PP
Weight: 21g
Wall thickness: 0.43mm
2 Cavities

Test condition
Three sets machines
Same oil pump displacement
Same settings
Processing several hours
Processing several hours
Oil temperature hold on 40 degrees
